Zion Sky Lounge & Dining folding roof terrace

The 14th floor Zion Sky Lounge & Dinning rooftop canopy protects the business area from any interruptions or weather problems.
YearsMaterialArea (m2)Type of formClientLocation
2020PVC/PES (PVDF)200MobileZion Sky Lounge and DiningVietnam

Table of contents

Project Overview: Installing a retractable roof terrace at Zion Sky Lounge

Project roof terrace The mobile roof at Zion Sky Lounge & Dining (14th Floor, Ho Chi Minh City) is a high-tech solution designed to solve the problem of operating outdoor spaces for high-rise business establishments. The project applies the Flexiifold automatic folding roof system, allowing the space to flexibly switch between a fully open state and a covered state, ensuring continuous business operations in all weather conditions.

  • Investor: Zion Sky Lounge & Dining
  • Category: Retractable Roof System
  • Structure: Aluminum frame system and multilayer PVDF membrane
  • Specifications: High wind load resistance, integrated drainage system, automatic operation
  • Location: 14th Floor, Ho Chi Minh City, Vietnam

Tổng quan dự án mái che sân thượng di động tại Zion Sky Lounge.

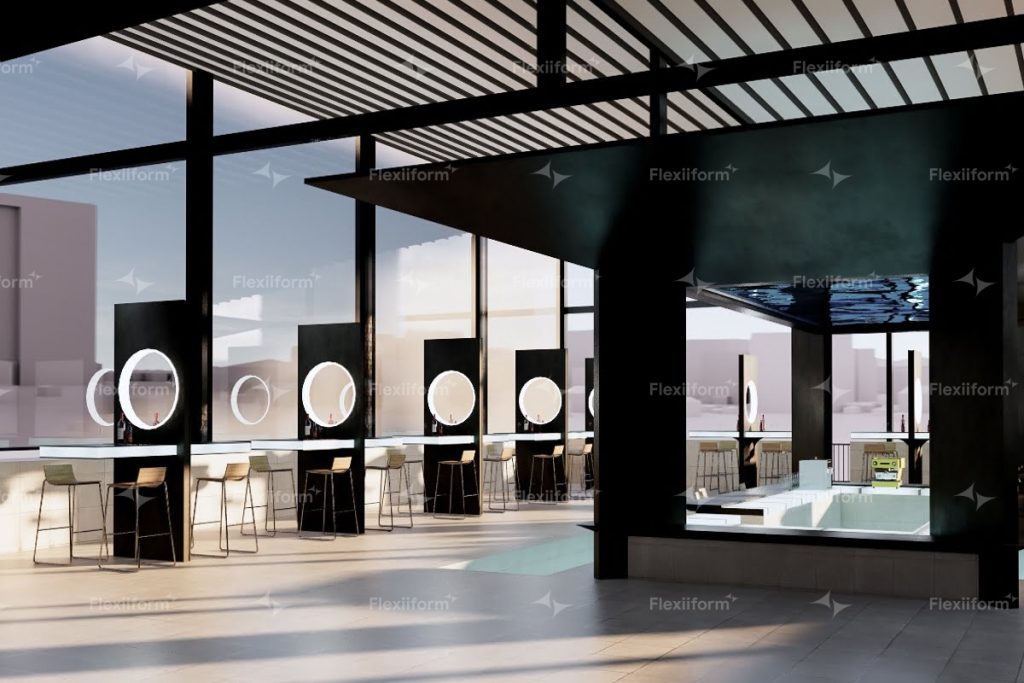

Flexiifold mobile terrace roofing system helps optimize outdoor business space.

Technical Requirements Analysis & Project Context

Operating a sky lounge on the 14th floor places extremely stringent technical and operational requirements on the roofing system:

  • High Wind Load Resistance: This is the most important and challenging technical factor. Due to its high position and lack of obstructions, the canopy must be designed and calculated to withstand high wind pressure, ensuring absolute safety.
  • Absolute Operational Flexibility: The core requirement was that the system should be able to open/close completely quickly and reliably. This allows for maximum use of open space on fine days and immediate protection of customers in the event of rain.
  • Effective Waterproofing and Drainage: When in the closed state, the roofing system must be 100% waterproof and have an integrated drainage system to handle heavy rains, avoiding water stagnation or leakage.
  • High-end and Luxury Aesthetics: The design of the roof system, including the frame and materials, must be sophisticated, modern, in harmony with the interior design style and luxury brand positioning of Zion Sky Lounge.

Technical Solutions and Implementation Process

To meet the above strict requirements, the Flexiifold automatic folding roof system solution with imported components and high-tech materials was selected.

Flexiifold Automatic Folding Roof System

The chosen technical solution is the Flexiifold automatic folding roof system. This system consists of aluminum profiles linked together, on which PVDF membrane panels are stretched. The entire system moves on a guide rail system powered by an electric motor, allowing the roof to be folded or opened smoothly, quickly and quietly, without affecting the customer experience.

Chi tiết hệ thống ray trượt và khung nhôm của mái che sân thượng.

Flexiifold folding roof system with aluminum frame and automatic sliding mechanism, integrated drainage system.

Technical Material: PVDF Stretch Film and Aluminum Frame

The roof material is a multi-layer PVDF membrane, which is high strength, UV-resistant, fire-resistant and has a design life of up to 15 years. The main structural system uses specialized aluminum alloy, which ensures both rigidity and the ability to span up to 8m, while being light in weight, helping to reduce the load on the building structure. This is an advanced material solution for Stretch canvas structure mobile.

Integrated Drainage System

One of the outstanding technical advantages of the Flexiifold system is the integrated drainage system. When the canopy is closed, rainwater is collected in pre-designed grooves on the frame and directed directly into the support columns, then connected to the building's drainage system. This solution ensures that drainage is completely controlled, keeping the space below dry.

Results and Performance Evaluation

Project roof terrace Mobility at Zion Sky Lounge has delivered a breakthrough operational solution that has had a direct and positive impact on business performance:

  • Optimizing Business Operations: Completely eliminates weather dependence. Zion Sky Lounge can operate 100% capacity per day, without loss of revenue due to unexpected rain.
  • Enhance Customer Experience: Providing a flexible and classy experience. Customers can enjoy a completely open space or a comfortable covered space in just a few minutes.
  • Technical Safety Assurance: The project is designed and constructed to withstand harsh wind conditions at high altitudes, ensuring absolute safety for customers and property.
  • Enhance Brand Value: Investing in a modern, high-tech roofing system has affirmed the luxurious and classy brand position of Zion Sky Lounge.

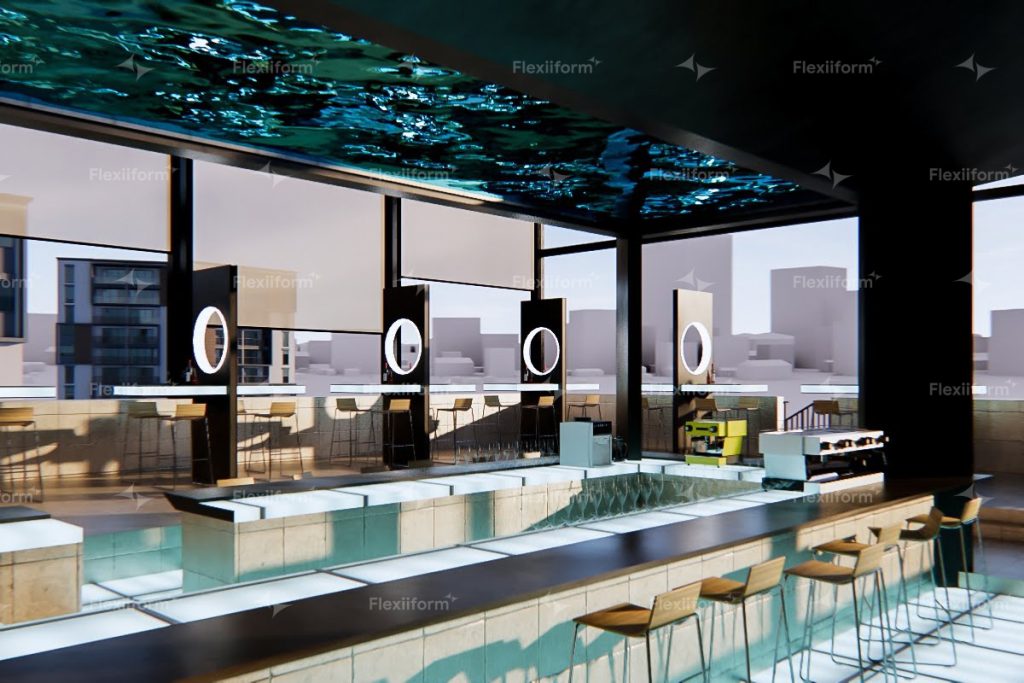

Không gian Zion Sky Lounge dưới mái che sân thượng di động.

The completed project offers a flexible, classy and safe business solution for high-rise spaces.

Contact Technical Consulting

Flexiiform specializes in providing design and construction solutions for mobile roofs for terraces, restaurants, cafes and projects with high technical and operational requirements. For detailed advice on your project, please contact our team of engineers directly.

Contact information:

Company: Flexiiform

Website: https://flexiiform.vn

Hotline/Email: [Your contact information]
