The Avenue shopping center movie theater canopy

The commercial center's cinema canopy stands out with its wide canopy, capable of preventing water from splashing into the lobby, keeping moviegoers safe.
YearsMaterialArea (m2)Type of formClientLocation
2005PVC/PES (PVDF)500horse saddleThe Avenue ChaengwattanaThailand

Table of contents

Project Overview: Construction of cinema canopy at The Avenue Chaengwattana Shopping Mall

Project cinema canopy at The Avenue Chaengwattana Shopping Center is an artistic tensile membrane structure, designed as a symbol for the entire complex. The project uses a large-scale, multi-peaked, free-form tensile membrane structure to cover the central square, creating a multi-functional public space that is both aesthetically pleasing and functional.

  • Investor: The Avenue Chaengwattana
  • Category: Architectural canopy for squares and lobbies
  • Structure: Multi-peak, free-form tensile membrane
  • Main materials: PVDF stretch film, steel structure
  • Location: Chaengwattana, Bangkok, Thailand

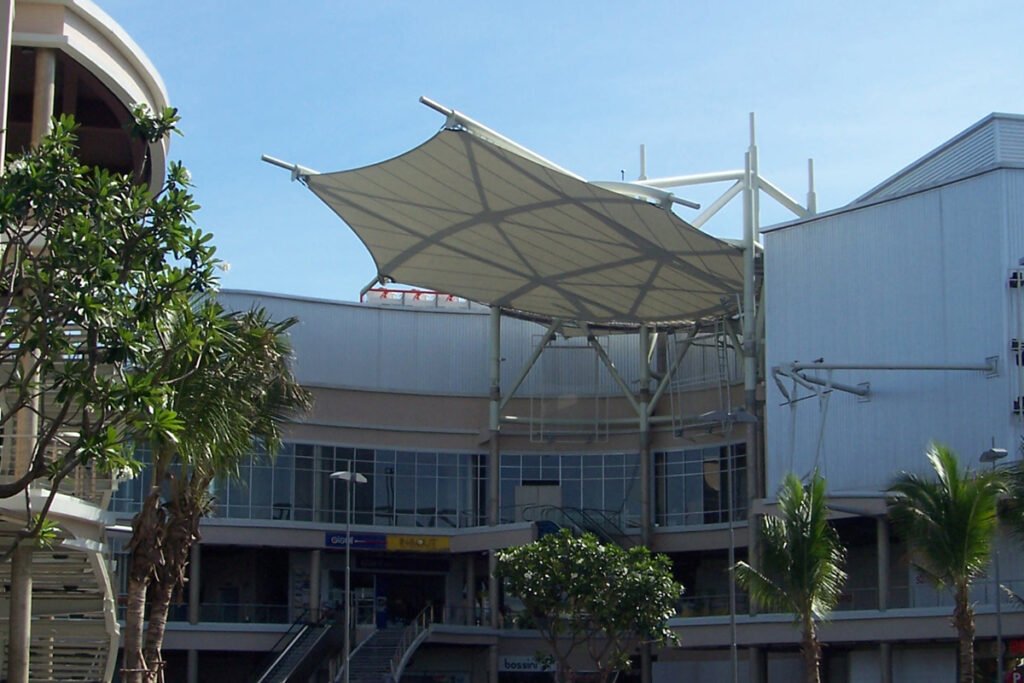

Tổng quan dự án mái che rạp chiếu phim tại TTTM The Avenue Chaengwattana.

Cinema canopy system with multi-peak tensile membrane design, creating architectural highlights for the shopping center.

Technical Requirements Analysis & Project Context

The project was developed with the requirement to create a central public space, both a cinema lobby and an event venue, requiring an iconic and multi-functional architectural solution. The main technical requirements included:

  • Creating iconic architecture: The canopy design must be a landmark, with a unique and modern shape to attract customers and shape the identity of the shopping center.
  • Large span, open space: The structure needed to cover a large plaza area with a minimum number of supporting columns, allowing the space below to be used flexibly for a variety of events.
  • Optimize Light and Visibility: The canopy must provide effective shade but still allow natural light to diffuse through, creating a bright, airy space without obstructing the view.
  • Durability and Efficient Construction: Requires a structural solution that is durable, long lasting, requires little maintenance and can be constructed quickly to minimize impact on business operations.

Technical Solutions and Implementation Process

To meet the above complex requirements, a free-form tensile membrane architectural solution was selected and implemented with specialized technical details.

Freeform Multi-vertical Tensile Membrane Structure Design

The technical solution is a free-form multi-peak tensile membrane system. The design was developed using specialized shape-finding and analysis software, allowing for the creation of complex curvilinear surfaces. The peaks and valleys are arranged asymmetrically, creating a dynamic, non-repetitive sculptural form that is aesthetically pleasing.

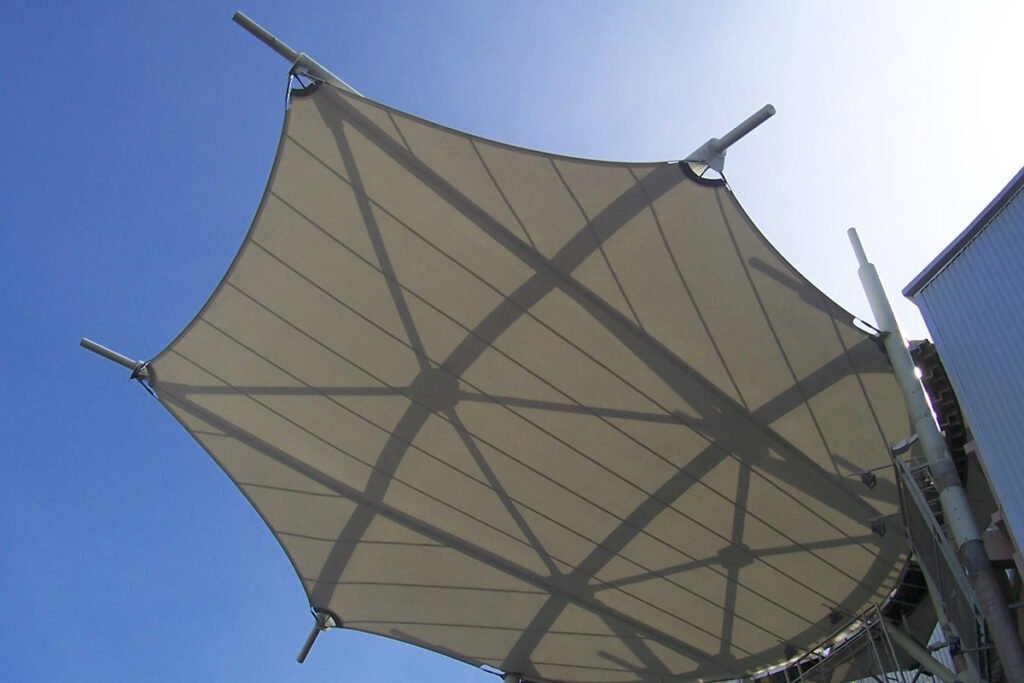

Chi tiết kết cấu thép của mái che rạp chiếu phim.

The inclined steel column system has both a load-bearing function and is an important architectural element.

Structural System with Inclined Steel Columns

The roof system is supported by a system of large steel columns, designed to be inclined at different angles. The inclined column solution is not only a technical requirement to create high anchor points for the tensile membrane but also an important aesthetic element, contributing to the impressive and modern appearance of the project. The entire structural system is calculated to withstand complex loads, especially wind loads.

PVDF Engineering Materials

The stretch film material is high-grade PVDF, with a design life of over 10 years, UV resistance, anti-fouling and fire resistance. The translucent properties of the material help diffuse natural light, creating a bright and pleasant space. This is the standard material for projects architectural stretch canvas large scale

Results and Performance Evaluation

Project cinema canopy at The Avenue Chaengwattana has become an iconic architectural work, reshaping the public space of the shopping mall:

  • In terms of architecture and identity: The project with its unique design has become an architectural icon, significantly enhancing the value and recognition of The Avenue brand.
  • About function and versatility: Provides a large, flexible covered plaza that can be used as a reception hall, lounge area or large-scale event space.
  • About customer experience: Create an attractive, convenient and comfortable public space, encouraging customers to spend more time at the shopping center.
  • About investment efficiency: Tension membrane solutions have proven to be cost and time effective compared to traditional roofing solutions of the same scale and complexity.

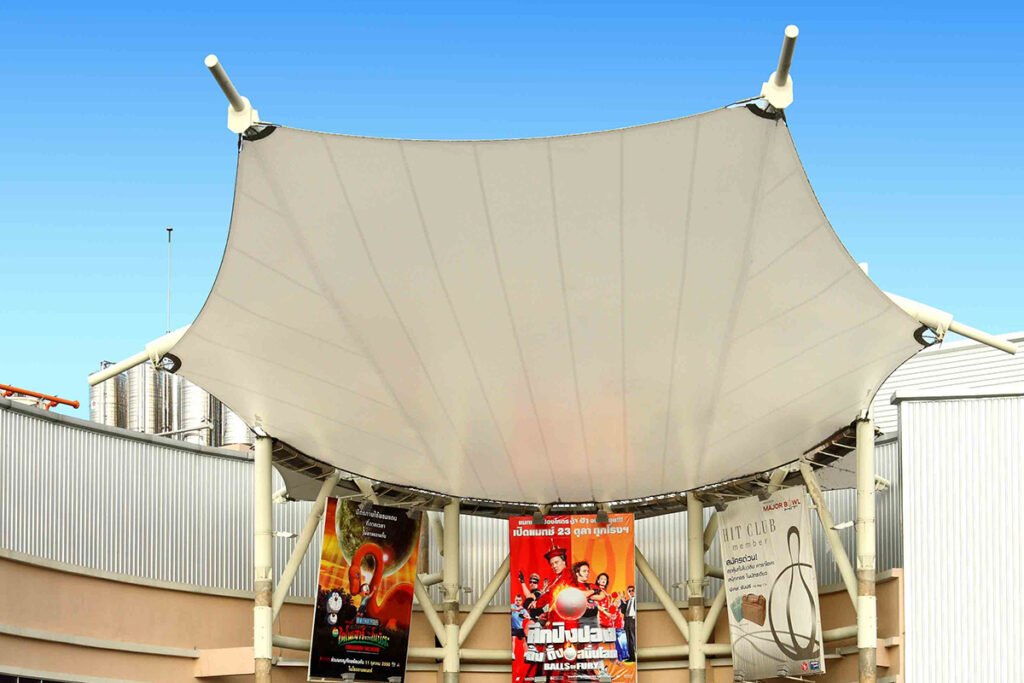

Mái che rạp chiếu phim The Avenue Chaengwattana hoàn thiện.

The completed project creates a multi-purpose, covered and aesthetically pleasing central square.
