Project Overview: Construction of walkway roofing system in Baansukhothai, Thailand

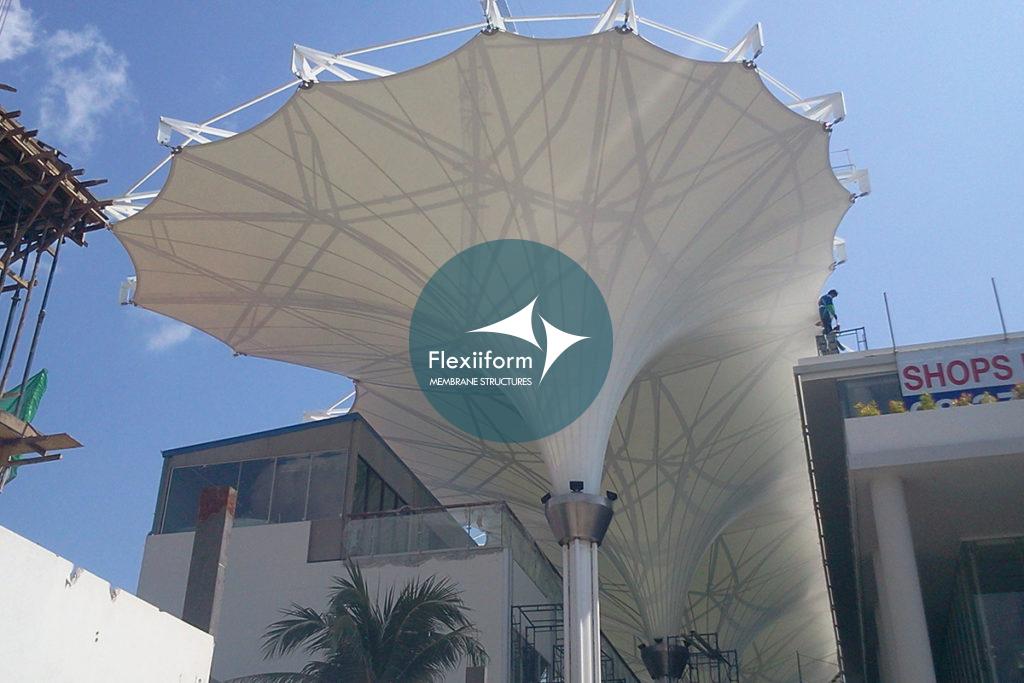

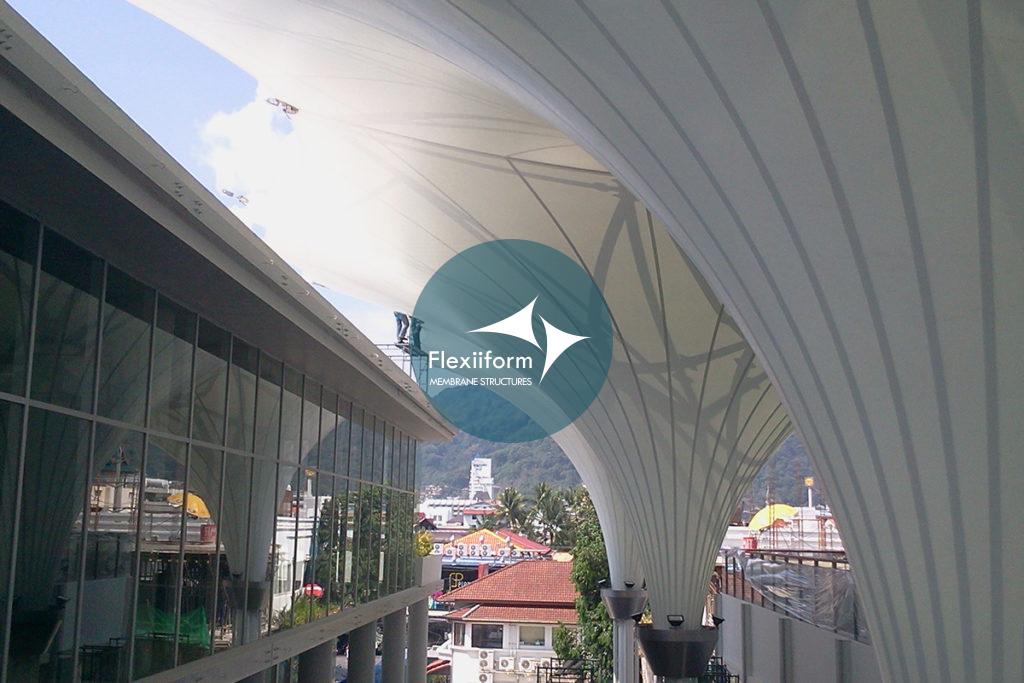

Project walkway canopy in Baansukhothai, Thailand, is a tensile membrane architectural solution implemented for outdoor corridors and walkways. The project uses a series of inverted funnel-shaped structures, simulating the image of flowers, to create a covered space that is both functional and a unique architectural highlight for the landscape.
- Investor: Baan Sukhothai Resort
- Category: Architectural Canopy for Walkways
- Structure: Inverted funnel stretch film module system
- Main materials: PVDF membrane, steel structure, integrated drainage system
Technical Requirements Analysis & Project Context
The project was developed with the requirement to create a covered corridor that is not only functional but also an architectural work of high aesthetic value, becoming a highlight for the landscape of the resort. The main technical requirements include:
- Unique architectural design: The design must have a unique shape, simulating the image of a "flower" according to the investor's request, different from the usual types of walkway canopies.
- Controlled drainage system: An important technical requirement is to manage and collect rainwater effectively, avoiding water flowing freely down the walkway causing inconvenience to users.
- Synchronous Module Structure: The design needs to be repeatable as independent modules that can be extended along the entire corridor, creating architectural consistency.
- Open space: The load-bearing structure must be designed to be minimal to maintain an open and airy feel to the walkway.
Technical Solutions and Implementation Process
To meet the above requirements, Flexiiform proposed and implemented a comprehensive technical solution, using an inverted funnel-shaped tensile membrane structure.
Inverted Funnel Design
Giải pháp kỹ thuật được lựa chọn là kết cấu màng căng dạng phễu ngược. Đây là một dạng biến thể của kết cấu nón (conical), trong đó điểm trung tâm được kéo xuống thấp thay vì đẩy lên cao. Màng căng được kéo từ một vòng dầm thép ở chu vi bên ngoài vào một điểm thu nước trung tâm. Thiết kế này tạo ra một hình thái kiến trúc độc đáo, mô phỏng một đóa hoa đang hứng sương, đáp ứng yêu cầu về thẩm mỹ của dự án.
Integrated Drainage System

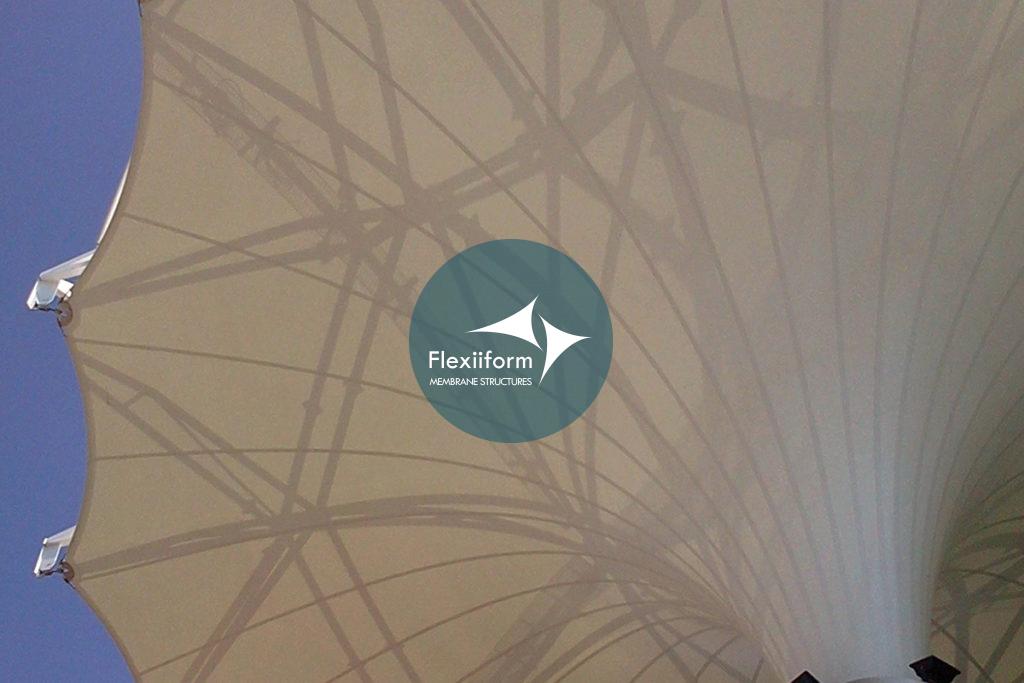

Ưu điểm kỹ thuật của kết cấu phễu ngược là khả năng tích hợp một hệ thống thoát nước chủ động. Toàn bộ nước mưa trên bề mặt mái được dẫn về phễu thu trung tâm và được dẫn đi thông qua một đường ống được giấu kín bên trong cột đỡ duy nhất. Giải pháp này giúp kiểm soát hoàn toàn việc thoát nước, tránh tình trạng nước chảy tràn lan, giữ cho khu vực lối đi bên dưới luôn khô ráo và an toàn.
PVDF Engineering Materials
The membrane material is a high-grade PVDF, which has high tensile strength, long service life and UV resistance. The translucent properties of the material help create a pleasant shaded space without being completely dark. The use of this lightweight material is an important factor in projects Stretch canvas structure.
Results and Performance Evaluation
System walkway canopy at Baansukhothai after completion has brought high efficiency in both function and aesthetics:
- In terms of architecture: The unique flower-shaped design creates an iconic corridor that becomes a distinctive and attractive architectural highlight for the landscape.
- About the function of shielding and drainage: Provides effective sun and rain protection, while the integrated drainage system works well, keeping the walkway dry.
- About user experience: Create a comfortable and enjoyable walking and resting space, enhancing the quality of the visitor experience.
- About construction efficiency: The modular design helps the installation process take place quickly and synchronously, saving time and costs for investors.
