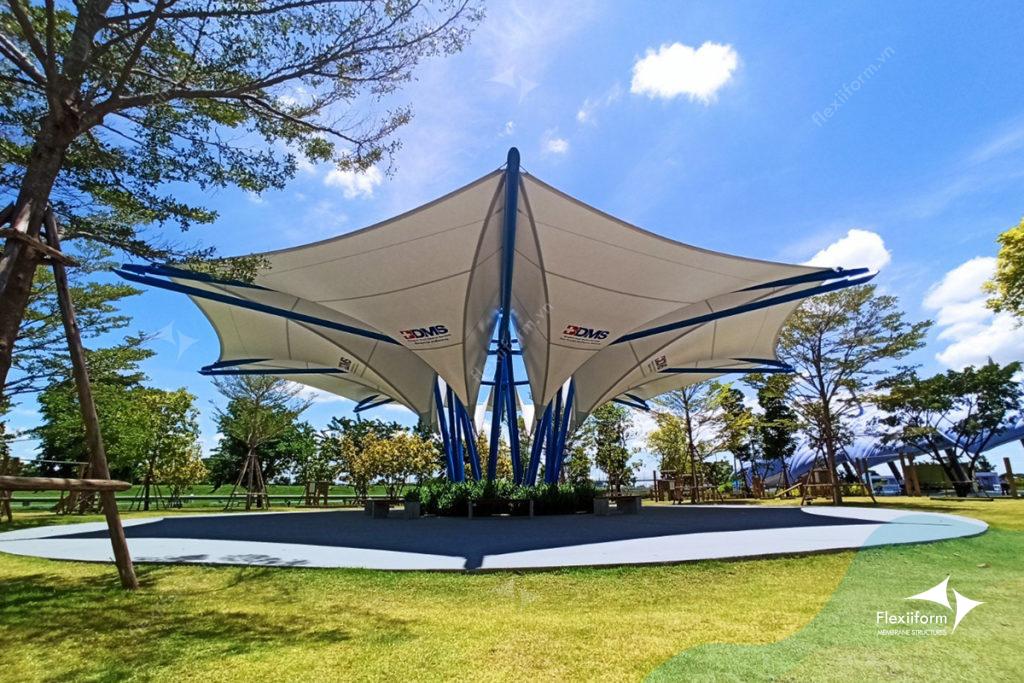

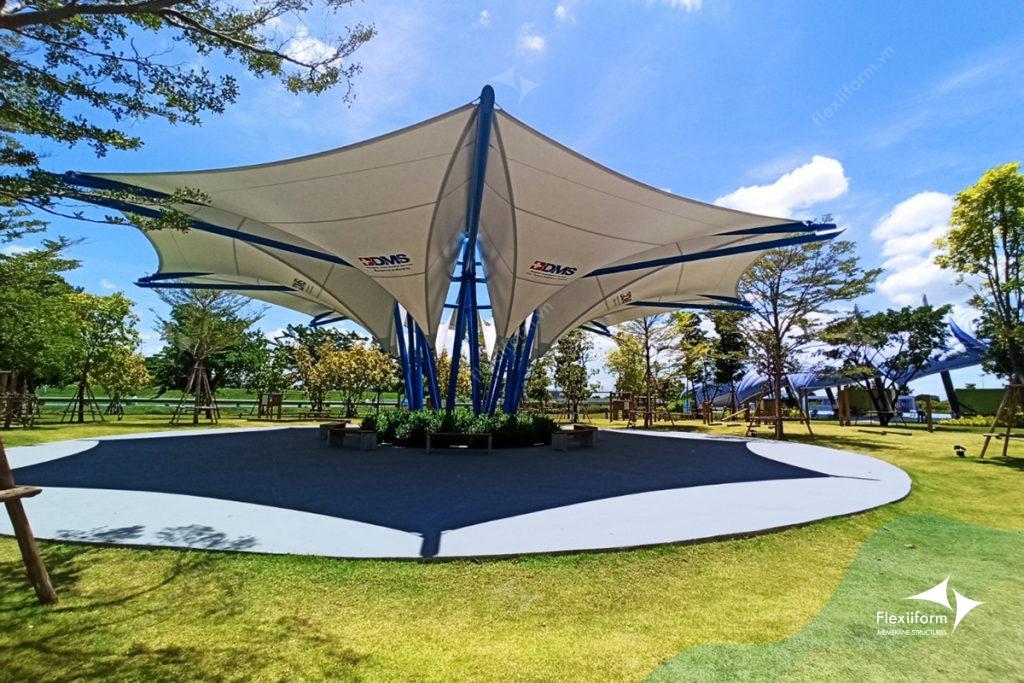

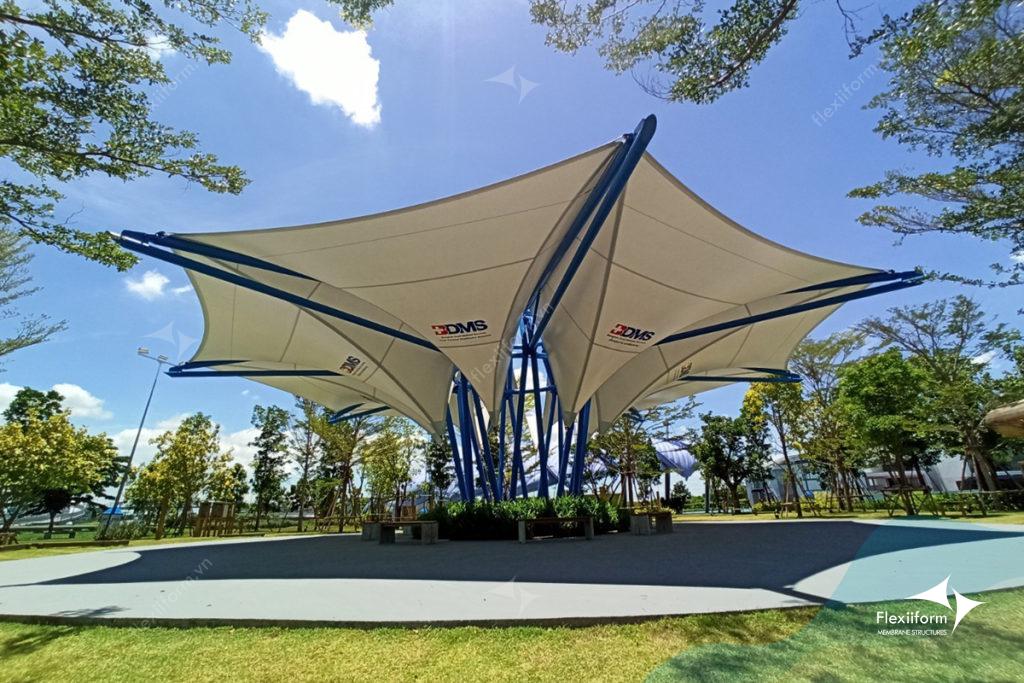

Project overview: Construction of TFNG park canopy with flower-shaped design
Project park canopy TFNG is an architectural sculpture that uses tensile membrane technology to realize the design idea of a shelter structure that simulates the shape of a multi-colored flower. The project is a technical challenge, requiring creative solutions to break the conventional tensile membrane structural forms, in order to create a resting space that is both functional and highly artistic.
- Investor: TFNG Park Management Board (Assumption)
- Category: Artistic canopy for rest area
- Structure: 6-petal flower-shaped stretch film (variation of inverted umbrella structure)
- Main materials: Printed PVDF stretch film, steel structure
- Location: Bangkok, Thailand (Assumption)
Technical Requirements Analysis & Project Context
The investor requested that the design of a canopy for the resting area not only meet the function but also be a work of art, in line with the overall creative spirit of the entire park. The main technical and aesthetic requirements include:
- Unique architectural design: The design had to successfully simulate the image of a flower with many petals, which required a complex and different structural solution.
- Breaking the usual structure: The requirement was to break away from the form of standard inverted umbrella canopies, which typically have a single central water collection point.
- Elegant and refined texture: The supporting steel structure system must be designed to be compact and have a small cross-section to create a light, delicate feeling, suitable for the image of the flower.
- Integrated graphic patterns: A technical solution is needed to print artistic designs onto the stretch film surface without distortion when the film is stretched into its final 3D shape.
Technical Solutions and Implementation Process
To meet these innovative requirements, Flexiiform's engineering team has developed specialized technical solutions for both structures and materials.
6-petal Flower Structure Design and Distributed Drainage System
To create a flower shape and break the traditional inverted umbrella structure, the technical solution is to separate the central water collection point into 6 independent collection points, corresponding to 6 “petals”. Each water collection point is a small funnel, anchored to the foundation by a load-bearing cable system. This solution not only creates a unique architectural shape but also helps to disperse rainwater effectively, increasing the stability of the structure. The main steel frame system is also divided into components with a more compact cross-section to create elegance and sophistication.
3D Tension Film Surface Printing Technique
Another complex technical requirement is the printing of the pattern onto the surface of the stretch film. Since the film will be stretched and deformed during installation to form a 3D curved surface, the initial printed image must be calculated and pre-distorted using specialized software. This process ensures that after the film is stretched into position, the pattern will appear in the correct shape and proportion as in the original design. This is a technique that requires a very high level of precision in both analysis and production.
PVDF Stretch Film Material
The material used is PVDF stretch film, which is durable, UV resistant and has an ideal surface for high quality digital printing. This material is the basis for projects architectural stretch canvas High requirements both technical and aesthetic.
Results and Performance Evaluation
Project park canopy After completion, TFNG has become a unique landmark project, exceeding the investor's expectations:
- In terms of architecture and aesthetics: Successfully realized the complex design idea, creating a unique functional sculpture, adding artistic value to the park.
- Technically: Successfully applied innovative engineering solutions such as distributed drainage systems and reverse deformation printing, demonstrating the ability to solve complex design problems.
- About function: Provide an effective shaded resting area, with a unique and attractive space, attracting people to use.
- About brand identity: The project has reinforced the creative and innovative image of TFNG Park, becoming a popular and highly recognizable place.
