The Serpentine Sackler gallery canopy is made from PTFE 2024 canvas

The Gallery Serpentine Sackler canopy is famous for applying a stretch canvas structure to its design. The properties of the canvas contribute to bringing the necessary artistic effect to the exhibition space.

TABLE OF CONTENTS

Thực trạng và Giải Pháp: Mái Che Gallery Serpentine Sackler – Sự hòa quyện giữa Kiến trúc Cũ và Mới

Current Situation and Solution: Serpentine Sackler Gallery Canopy – A Blend of Old and New Architecture

In contemporary architecture, the reconciliation of historic buildings and modern design is a major challenge, requiring creativity and advanced techniques. The Serpentine Sackler Gallery canopy is a prime example of this perfect combination. The building is covered with a new, modern, triple-layered fabric, seamlessly blending the existing 19th-century architecture with the ultra-modern 21st-century architecture. This new space, with its ephemeral restaurant and social areas, is designed to be a special destination. As Zaha Hadid shared in the Magazine DezeenThe idea is to demonstrate that two worlds – old and new, with gardens and parks – can come together seamlessly. Although the structure appears temporary when adjacent to the 19th-century building, the Serpentine Sackler Gallery canopy is a permanent, fully enclosed, multifunctional addition to the Serpentine Gallery.

Technical Requirements Analysis & Solution Context

The Serpentine Sackler Gallery project posed complex technical and contextual requirements:

* Integrating history and modernity: The biggest challenge was adding a permanent, multi-functional structure (restaurant, social space) to a 19th century historic building while ensuring architectural harmony and open space.

* Complex Shape: Realizing a free-flowing, curving cone shape requires dynamically shaped materials and sophisticated load-bearing structures.

* Environmental control: Ensures interior spaces are filled with natural light while still being effectively insulated, meeting fire safety and sustainability standards.

* Overall aesthetics: The structure must be beautiful from every angle, inside and out, and must create a feeling of lightness and floating.

This context requires the use of advanced building materials, capable of overcoming the limitations of traditional materials and responding to the unique architectural vision of the Zaha Hadid Architects.

Technical Solutions

The Serpentine Sackler gallery canopy is a technical achievement, using fabric as a construction medium to create a structure that is light, bright and sustainable from every angle.

Collaboration and Fabric as a Construction Medium

Architen Landrell had the pleasure of collaborating with Zaha Hadid Architects on this unique project, following on from the success of the London 2012 Informatics Centre. Zaha Hadid saw the potential of using fabric as a construction medium for the Serpentine Sackler gallery canopy, with the desire to create a structure that was light, bright and beautiful from every angle, inside and out. Unlike other construction mediums, fabric can create dynamic undulating forms, and this building truly showcases what is possible with a fabric-supported structure. Architen Landrell.

Complex design and material composition

The free-flowing conical structure of the Serpentine Sackler Gallery canopy is itself incredibly complex in design, featuring five elliptical enamelled bands (to transmit light), five tapering columns (for structural support), a double curvature (in all directions) and a shape that appears to touch the ground at two points. Frameless glass walls encircle the building, creating the illusion that the roof is floating in space.

The canopy fabric is a three layer system:

  • Outer layer: PTFE (Polytetrafluoroethylene) chosen for its long life, Class 0 fire rating and self-cleaning properties.
  • Middle layer: A fireproof insulation layer of Firefly Vulcan and Expert 50.
  • Inner layer: Atex 2000 Silicone Coated Glass.

Each layer covers approximately $538\text{m}^2$ of surface area. This three-layer insulation system achieves a U-Value of $0.18$ and meets the Part L requirements for energy performance.

Results and Performance Evaluation

The Serpentine Sackler Gallery Canopy is a striking and stunning project that succeeds in creating a unique art exhibition space. Not only has the project attracted media attention, it has also highlighted fabric as a design and building material of the century. The ability to seamlessly combine the existing 19th century architecture with the ultra-modern architecture of the 21st century, and to create a restaurant and social space with an ephemeral feel, has transformed the site into a true destination. The complexity of the design (free-flowing cones, double curvatures, tapered columns) combined with the use of fabric as a construction medium demonstrate the potential of load-bearing fabric structures to create dynamic and unique forms. Material performance (PTFE, insulation, glass-coated silicone) ensures longevity, fire safety and energy efficiency, turning the Serpentine Sackler gallery canopy into an architectural icon that demonstrates the harmonious combination of history and future.

Mái che gallery Serpentine Sackler - Sự pha trộn giữa cái cũ và cái mới

Serpentine Sackler gallery canopy.

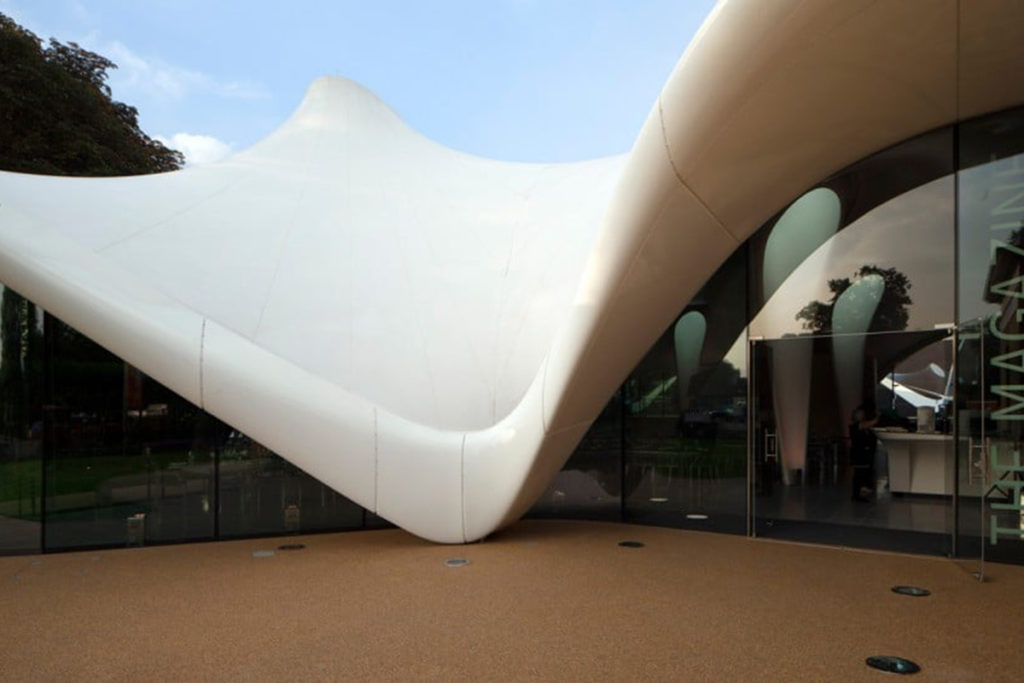

Chi tiết mái che gallery Serpentine Sackler thể hiện sự hợp tác với Zaha Hadid Architects

Detail of the Serpentine Sackler gallery canopy.

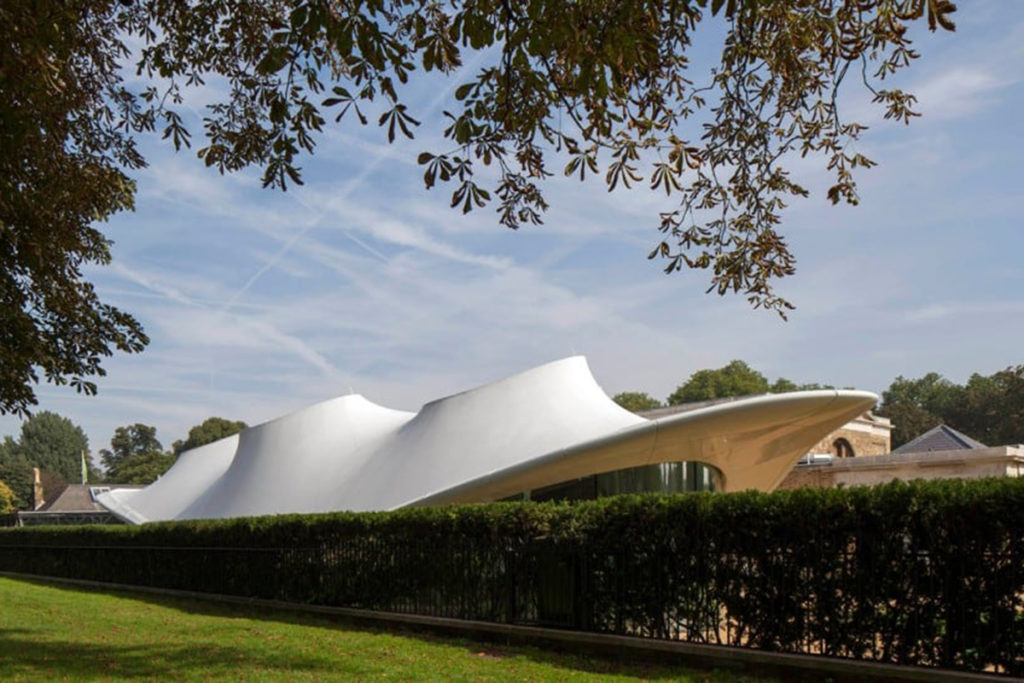

Tổng quan mái che gallery Serpentine Sackler với vải làm phương tiện xây dựng

Overview of the Serpentine Sackler gallery canopy.

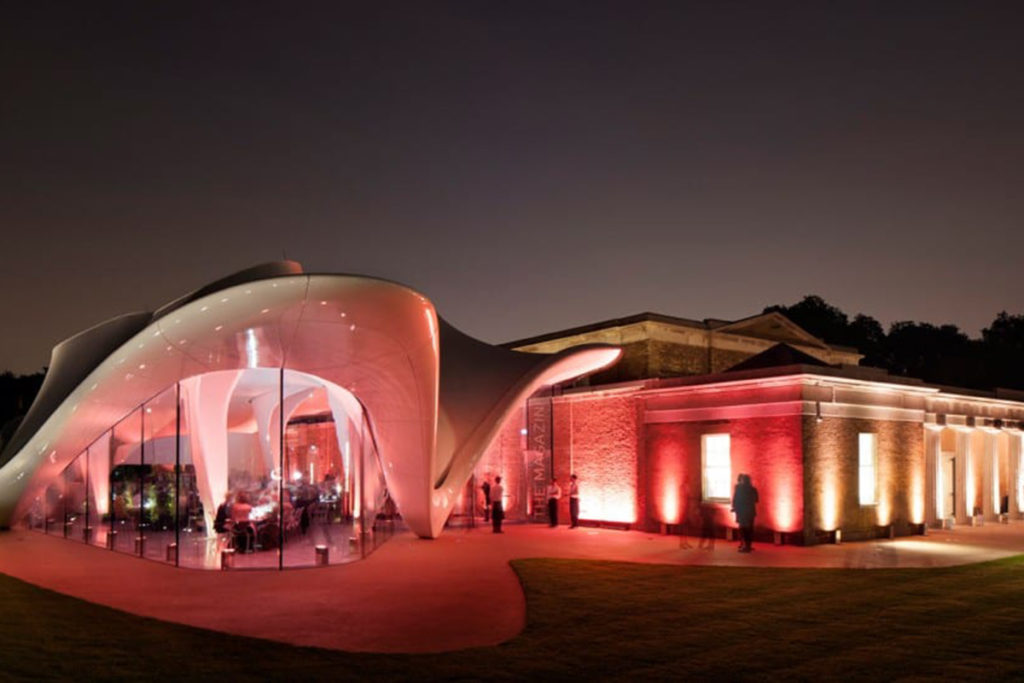

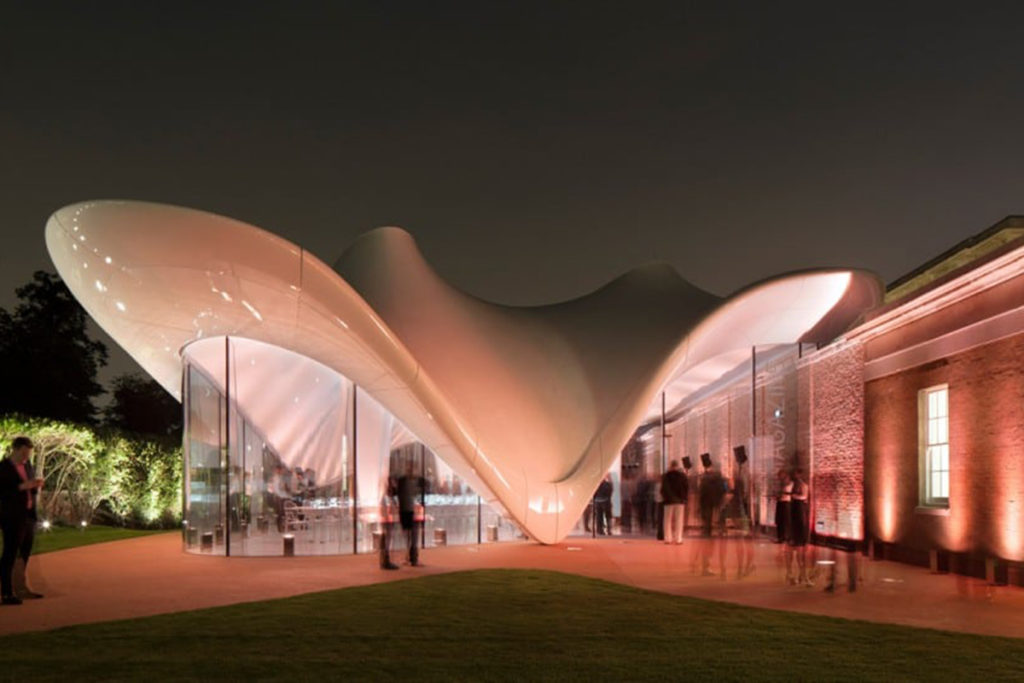

Điểm nhấn mái che gallery Serpentine Sackler buổi tối với thiết kế phức tạp

Serpentine Sackler gallery canopy at night.
