Current Situation and Solution: Burnham Pavilion Capsule Canopy Design – Reimagining Urban Planning through Breakthrough Architecture
To celebrate the centennial of Daniel Burnham’s Plan of Chicago – one of the architects who reshaped the city’s downtown area in 1909 – a series of events were held. Among them, two temporary pavilions by UN Studio and Zaha Hadid were installed in Millennium Park, hosting multimedia exhibitions about Chicago’s future. Zaha Hadid Architects’ pavilion, the capsule-shaped Burnham Pavilion, combined new formal concepts with memories of Burnham’s bold, historic urban planning. The overlapping of spatial structures with hidden traces of the Burnham Plan were overlaid and inscribed within the structure to create a dynamic form that represents the continuation of Chicago’s tradition of advanced architecture and engineering.
—
Technical Requirements Analysis & Solution Context
The Burnham Pavilion project posed complex technical and contextual requirements:
* Revisiting history and shaping the future: A design was needed that honoured the visionary Burnham Plan, while also demonstrating regeneration and innovation at an urban scale, welcoming the future with innovative ideas and technologies.
* Temporary: As a temporary booth, the structure must be easy to install and disassemble after the exhibition period.
* Complex and expressive shapes: Requires the ability to create dynamic, organic and fluid shapes, without the constraints of traditional building materials.
* Interactivity: The building needs to host multimedia exhibits and attract attention, encouraging individuals to pause, orient themselves, and engage with the larger exhibition.
This setting calls for the use of materials that are capable of creating beautiful geometries and can be connected through stretch fabric as a reminder of Burnham's original ideas.
—
Technical Solutions
The capsule-shaped Burnham Pavilion is an architectural achievement, showcasing a fusion of historical ideas and modern techniques through tensile fabric materials.
Design and Philosophy
Burnham Pavilion capsule canopy design Zaha Hadid Architects continues Chicago’s renowned tradition of cutting-edge architecture and engineering, on the scale of a temporary pavilion, while also referencing the organizational systems of the Burnham Plan. The structure is arranged diagonally in the early 20th century Chicago Plan. Fabric is then draped using contemporary 21st century techniques to create fluid, organic forms – while the structure is always connected via tension fabric as a reminder of Burnham’s original ideas. As Zaha Hadid has said: “Fabric is both a traditional and a high-tech material whose form is directly related to the forces acting on it – creating beautiful geometries that are never arbitrary. I find this very exciting.”
Materials and Functions

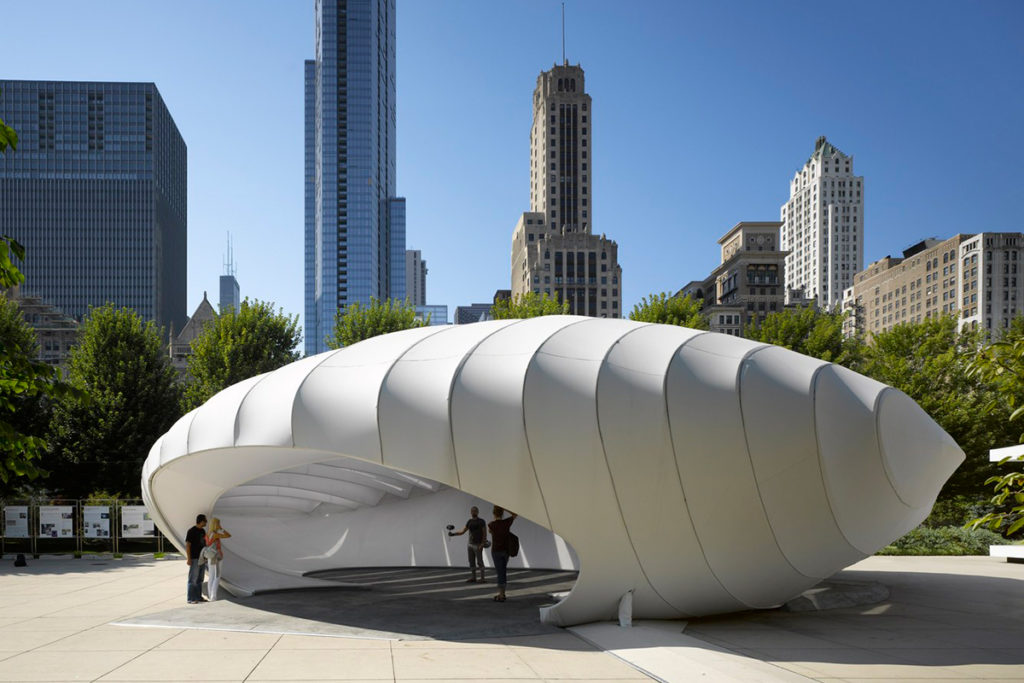

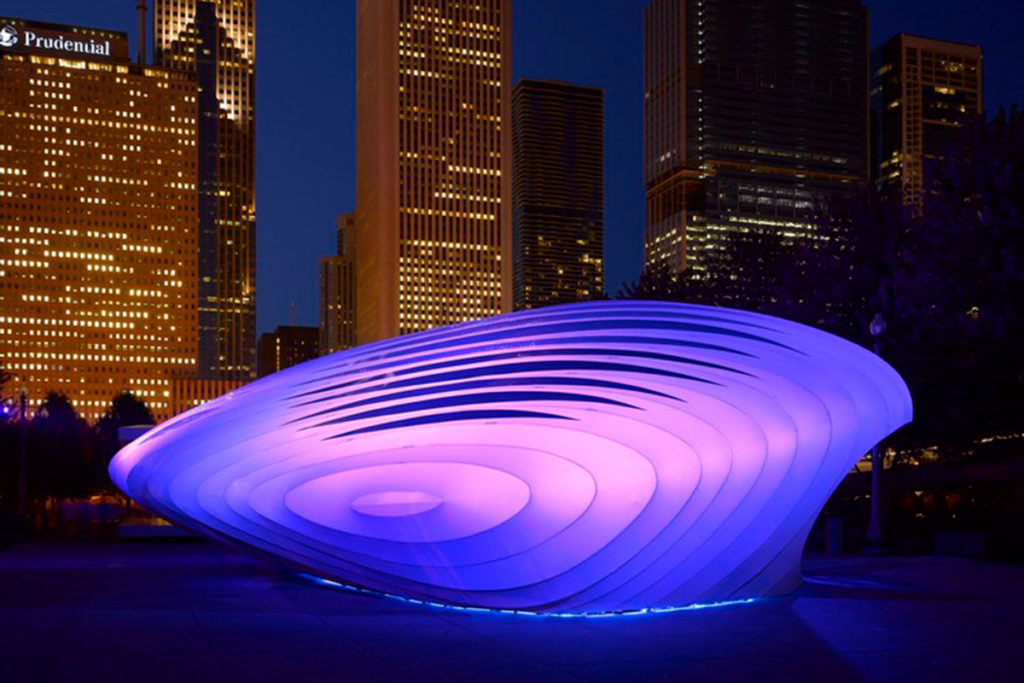

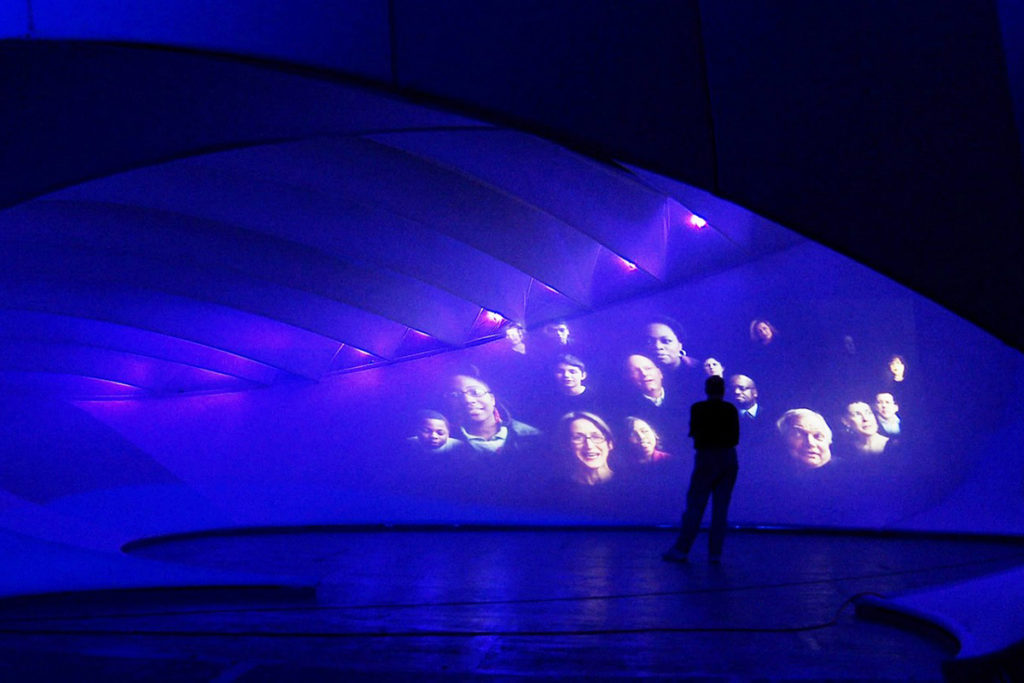

The idea of using fabric to cover the capsule-shaped Burnham Pavilion is to create a light, bright structure that is beautiful from every angle, inside and out. Unlike other construction mediums, fabric can create dynamic, undulating shapes, and this building really showcases what is possible with fabric-supported structures. The semi-translucent nature of the pavilion reduces the need for interior lighting, while also allowing light and images to be transmitted to the surface, making the projects almost completely self-sufficient in daylight. This optimizes the multimedia exhibition space and creates a striking visual effect.
—
Results and Performance Evaluation
The capsule-shaped Burnham Pavilion successfully realized the vision of the Burnham Centennial Plan. The building is not just a temporary structure but an expressive architectural work that connects Chicago’s past and future. The ability to create dynamic, organic shapes with fabric, combined with the hidden footprints of the Burnham Plan, created a unique space that attracts attention and encourages interaction. The design demonstrates the potential of tensile fabric to create highly symbolic structures that convey deep meaning and contribute to the successful development of architecture, while highlighting fabric as the design and building material of this century. The building has slowed down the path to the elevators more smoothly, and from a distance, the new structure appears interesting, demanding the attention of curious minds.
—
Contact Technical Consulting
Flexiiform is a professional Tensile Fabric design and construction company in Vietnam. With a team of well-trained and skilled Architects and Engineers, we are proud to be the only unit in Vietnam to receive professional advice from FasTech Company – The leading design and construction company of tensioned fabric structures in Thailand, with nearly 30 years of prestige and experience in the industry and successfully implemented more than 1,000 tensioned fabric projects in Thailand and Southeast Asia. With the strength of creative ideas in tensioned fabric architectural design and practical construction methods, Flexiiform is confident to bring the most optimal solutions for each specific project, similar to the capsule-shaped Pavilion Burnham canopy.
For expert advice or to request a detailed quote, please contact us. You can read more Reference video from Zaha Hadid Architects and Other Flexiiform products.
